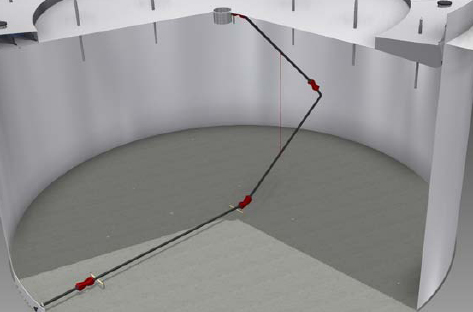

Pivot Joint Type
The roof drain system is designed to remove accumulated rainwater from the topside of external floating roof tanks. The articulated rigid pipe-type system consists of pivot joints and rigid steel pipes, providing an effective solution for roof drainage. Its high-quality pivot joints ensure long service life, and the system is fully compatible with 100% aromatics.
Parts & Materials
Part No
Description
Material
1
Pivot Joint
Composite Hose w/ Hot Dip. Galv. Guide Plate
2
Drain Pipe
Carbon steel
3
Stop Chain
Hot Dip Galv. Steel
4
Pipe Support
Carbon steel
5
Check Valve
Carbon steel
Specifications
Model Name
TTS-RD2, Roof Drain System
Type
Pivot Joint Type w/ Rigid Pipes
Installed on
External Floating Roof Tanks
Available Size
3” ~ 6”
Features
• Compatbilitywith wide ragnge of produt
• No o-rings, seals and bearings
• No lubrication requird
• No stress or load on hose end connection
• Drain line doesn’t scrape or drag on the tank bottom
• Does not add pressure to the floating roof.
• High operating presure
• Has negative buoyancy in water or heavy crude.
• Less maintenance.
• Long service life
• Easy to install
