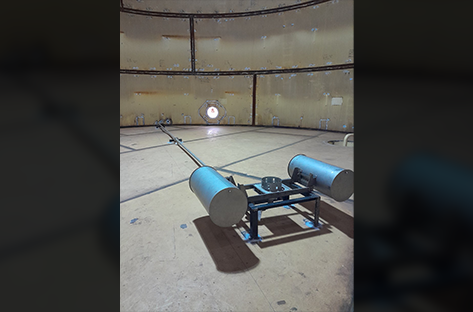

Oil Skimmer System
The TTS Oil Skimmer System is designed to remove the top layer of liquid or skim off impurities, typically a thin layer of light oil. Its high-quality swivel joints ensure reliable performance and long service life, while all float tubes are pressure tested. An anti-vortex inlet minimizes vortex formation.
Parts & Material
Part No
Description
Material
1

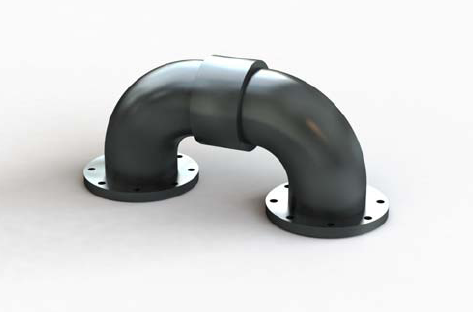

Swivel Joint
Carbon steel or Stainless steel body (* Swing joint type is available)
2
Skimmer Pipe
Heavy duty type Aluminum, Carbon steel or Stainless steel
3
Float Tube
Aluminum or Stainless steel
4
Stop Chain
Galvanized steel or stainless steel
5
Pipe Support
Carbon steel or Stainless steel
Specifications
Model Name
TTS-OS1 Oil Skimmer System
Type
Swivel Joint & Rigid Pipe Type (*Swing joint type is available)
Installed on
Fixed & External Floating Roof Tanks
Available Size
2” to 12”
Features
• 100% aromatic resistance
• High performance swivel joint for extremely long life
• No worries of connection with roof legs
• Configuration in single, double and triple arms is available
• Designed for horizontal and vertical tanks
• Heavy-duty load bearing capacity ball-bearing raceway for swivel joint
• Easy to install
